PWESD-5VDDA ESD 防护器件宣传页

产品概述

Low capacitance bidirectional Electro Static Discharge (ESD) protection diode in a DFN1006(SOD882) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.

主要特性

· Low Capacitance 2.8 pF(Typ)

· Reverse stand-off voltage: 5V Max

· Low leakage current: nA Level

· Response time is typically < 1 ns

· IEC61000−4−2 Level 4 ESD Protection

典型应用

· Cellular Handsets & Accessories

· Digital Cameras

· Peripherals

· MP3 Players

· Portable Instrumentation

· Notebooks & Desktop Computers

· Keypads, Side Keys, USB 2.0,LCD Displays

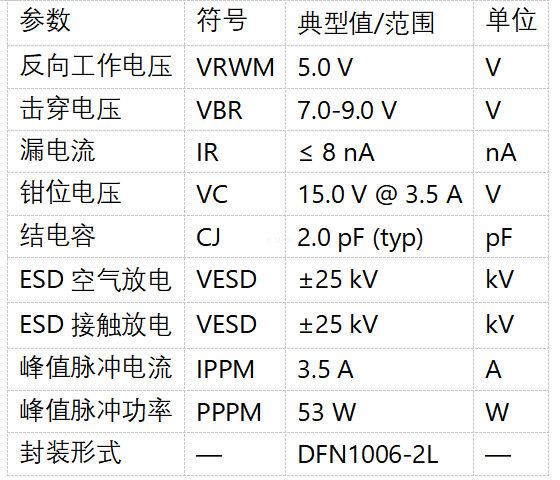

关键参数
