PWESD-24VSDB ESD 防護器件宣傳頁

産品概述

These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.

主要特性

· Reverse stand-off voltage: 24V Max

· Ultra Low Capacitance: 25pF

· Low leakage current: nA Level

· IEC 61000-4-2 (ESD Air): ±30kV

· IEC 61000-4-2 (ESDContact): ±30kV

· IEC61000-4-5(Lightning 8/20μS): 9A

典型應用

· Cell Phone Handsets and Accessories

· Microprocessor based equipmen

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

· Computers and peripherals

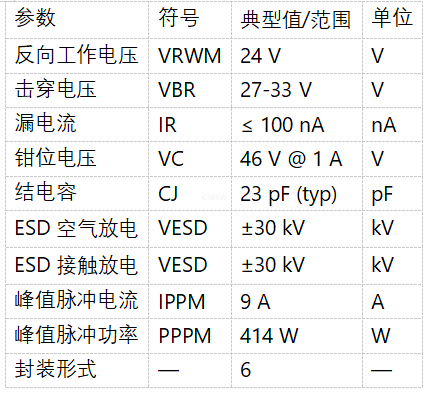

關鍵蔘數
