PWESD-24VSDC ESD 防護器件宣傳頁

産品概述

These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.

主要特性

· Bidirectional ESD protection of one line

· Reverse stand-off voltage: 24.0V Max

· Low leakage current: nA Level

· Response time is typically < 1 ns

· Low clamping voltage: VC =43V @ IPP = 6 A (TYP)

· ESD Protection: 20kV(air)/ 15kV(contact) ( IEC61000-4-2)

· RoHS compliant

典型應用

· Cell Phone Handsets and Accessories

· Microprocessor based equipment

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

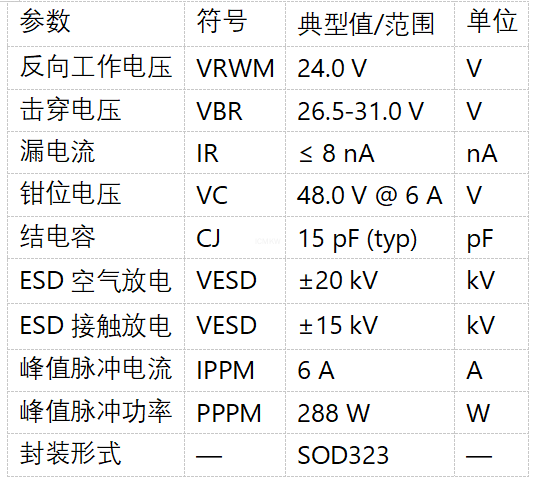

關鍵蔘數
