PWESD-24VSSA ESD 防護器件宣傳頁

産品概述

Unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD and other transients

主要特性

· Unidirectional ESD protection of one line

· Reverse stand-off voltage: 24V Max

· Low leakage current: nA Level

· Response time is typically < 1 ns

· Low clamping voltage: VC =42 V @ IPP = 6 A (TYP)

· ESD Protection: 30kV(air)/ 30kV(contact) ( IEC61000-4-2)

· Surge Protection: 6A ( IEC 61000-4-5 8/20 µs)

典型應用

· Cellular phones

· Portable devices

· Digital cameras

· Power supplies

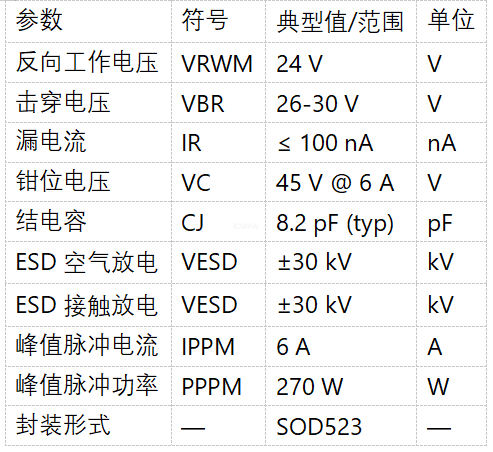

關鍵蔘數
